    RGB Pumpkin Seed Color Sorter Machine Reliable Dust Cleaning 640 Channels

    Ask Lasest Price
    Brand Name : Coreprogram
    Model Number : CVG-10
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000 sets per year
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

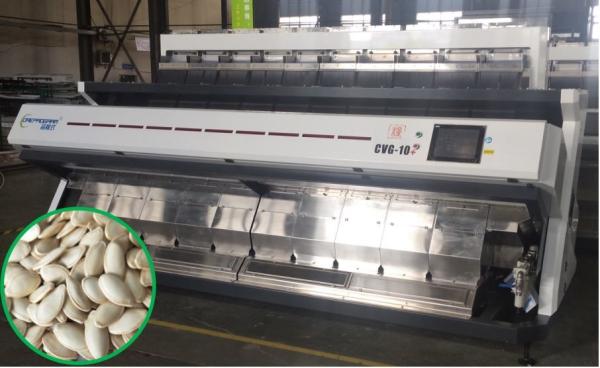

    RGB Pumpkin Seed Color Sorter Machine Reliable Dust Cleaning 640 Channels

    Reliable Dust Cleaning RGB Pumpkin Seeds Color Sorter Machine

    Product Advantages:
    High-quality Distinction System
    Adopting HD full color 5000+ PX CCD image sensor that reach the aim of distinguishing 0.1mm object.
    Image Processing System
    Adopting the chips of FPGA and DSP from companies of Alter and TI.
    The forth generation processing technology of EPGA which sharply promote the processing speed.
    Adjustable Light Source Technology
    The overall upgrade LED source could adjust the power of light source according to those different materials.Ensure the accurate obtaining of materials’ information;LED lighting system with radiating function makes it in longer using,lower energy consumption and better performance.
    Self-cleaning System
    Special cleaning and dust absorption device provide a better production environment.
    Original Creative High Frequency Solenoid Valve
    With the national patent certification, operating reached 10 billion times make the solenoid valve is not a quick-wear part anymore;respond rapidly, ultra low air-consumption.
    Friendly UI
    Advanced touch screen proves the zooming and sliding function which is easy to test and operate. Multiple sorting modes enable easier operation.

    Technical Parameters:

    ModelCapacity
    (t/h)
    Optimized Carryover
    (bad:good)
    Sorting Accuracy
    (%)
    Power
    (Kw)
    Voltage
    (V/Hz)

    Dimension

    L×W×H(mm)

    Weight

    (kg)

    XCS800.8-1.2>20:1>99.90.5-0.8220/50967*1553*1784286
    CVG-53-5>20:1>99.93.3220/502617*2077*17951532
    CVG-63.5-6>20:1>99.94.2220/502955*2077*17951752
    CVG-73.5-8>20:1>99.95.0220/503293*2077*17951910
    CVG-84-9>20:1>99.96.0220/503641*2077*17952170
    CVG-105-12>20:1>99.97.05220/504317*2077*17952520
    CVG-126-13>20:1>99.98.3220/504993*2077*17952960

    Note: Due to different raw materials and different impurities ratio , parameters above
    will vary to some extent ,which are references for you choosing a suitable model.

    Working Schematic :

    From the schematic ,we can learn that when the materials enter the chute ,the sensor will recognize the shape and color of materials, if there are some specked ,splitted ,rotten and other defects,the ejector system will release compressed air to change the path of rejected materials with defects into rejected hole . The accepted materials will come out from the accepted hole .

    Sorting Case :
    Example of Coffee Beans Sorting
    Accepted Pumpkin Seeds Rejected Pumpkin Seeds
