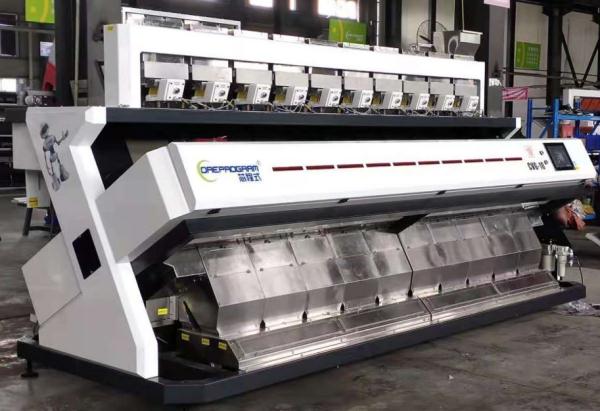

    CCD Coffee Bean Color Sorter 10 Chutes 99.9% Accuracy 4317*2077*1795mm\

    High Accuracy 10 Chutes Multi-Functional CCD Coffee Beans Color Sorter

    Product Superiority :
    1. Brand new photoelectric design LED light source, More energy-saving, low heat.
    2. The light source and the sorting box are set independently to reduce the interference of dust on
    the material sorting .
    3. Unique bottom exhaust dust removal system, excellent dust removal effect, stable performance in
    dusty environment .
    4. Easy to learn and operate .
    5. Simple optical system design, precise automatic calibration system , well-designed man-machine
    interface .

    Technical Parameters:

    ModelCapacity
    (t/h)
    Optimized Carryover
    (bad:good)
    Sorting Accuracy
    (%)
    Power
    (Kw)
    Voltage
    (V/Hz)

    Dimension

    L×W×H(mm)

    Weight

    (kg)

    XCS800.8-1.2>20:1>99.90.5-0.8220/50967*1553*1784286
    CVG-53-5>20:1>99.93.3220/502617*2077*17951532
    CVG-63.5-6>20:1>99.94.2220/502955*2077*17951752
    CVG-73.5-8>20:1>99.95.0220/503293*2077*17951910
    CVG-84-9>20:1>99.96.0220/503641*2077*17952170
    CVG-105-12>20:1>99.97.05220/504317*2077*17952520
    CVG-126-13>20:1>99.98.3220/504993*2077*17952960

    Note: Due to different raw materials and different impurities ratio , parameters above
    will vary to some extent ,which are references for you choosing a suitable model.

    Working Schematic :

    From the schematic ,we can learn that when the materials enter the chute ,the sensor will recognize the shape and color of materials, if there are some specked ,splitted ,rotten and other defects,the ejector system will release compressed air to change the path of rejected materials with defects into rejected hole.The accepted materials will come out from the accepted hole .

    Sorting Case :
    Example of Coffee Beans Sorting
    Rejected Coffee Beans Accepted Coffee Beans
